Full automatic roof tile sheet rolling forming machine double layer roof panel
Providing innovative machinery from IBR trapezoid to glazed tiles manufacturers.
Revolutionize roofing with innovative machinery.
Comprehensive support for enduring success.
Product Description
Introducing our Full Automatic Roof Tile Sheet Rolling Forming Machine, designed specifically for the manufacturing of double layer roof panels. This advanced machinery boasts exceptional product features, applications, functions, and advantages. With seamless precision, it effortlessly produces high-quality roof tile sheets. Its user-friendly interface ensures smooth operation, while its durability guarantees longevity. Maximize productivity and efficiency with our cutting-edge solution, revolutionizing the roll forming industry. Elevate your manufacturing capabilities and achieve remarkable results with our innovative product. Experience the ultimate advantage in roof panel production.
Product Features
- Full automatic operation
- Double layer roof panel formation
- Efficient roof tile sheet rolling forming
- Easy extraction of the core without expansion
- Highly precise and accurate
Application of roof tile sheet rolling forming machine
- Efficiently produces roof tile sheets
- Rolling forming machine for double layer roof panels
- Automated process for seamless production
- Produces high-quality and durable roof panels
- Ideal for roofing construction projects
Hydraulic cutting device
This device for decking products cutting.Whole unit structure with steel plate welded,stable and strengthed.
With double guide pillar,ensure cutting process stable and smoothly.
Double cylinders,use steel oil pipe instead of rubber oil pipe,durable and beautiful.High strength sealing ring joint to avoid oil leakage.
Cutting blade base will be T type with milling machine processing for improving flatness,thereby extending the service life of the cutting tool.
Cutting blade material will be Cr 12Mov.
Quenched 58-60 to ensure hardness.
Electrical control system

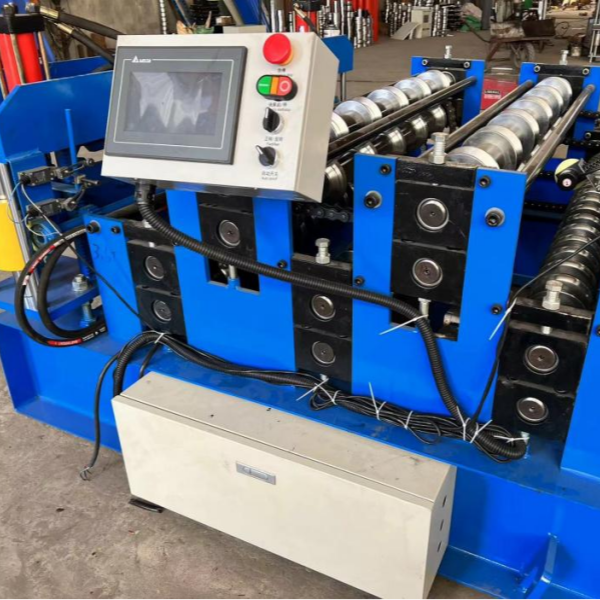

Control Unit mainly for Delta,including 7inch HMI and PLC.
Low voltage Components:Delixi or schneider.
Frequency Changer/Inverter:ZONCN/Delta
Encoder Brand:Omron
All electrical brands are well-known domestic and foreign brands with 3C/CE/UL standard

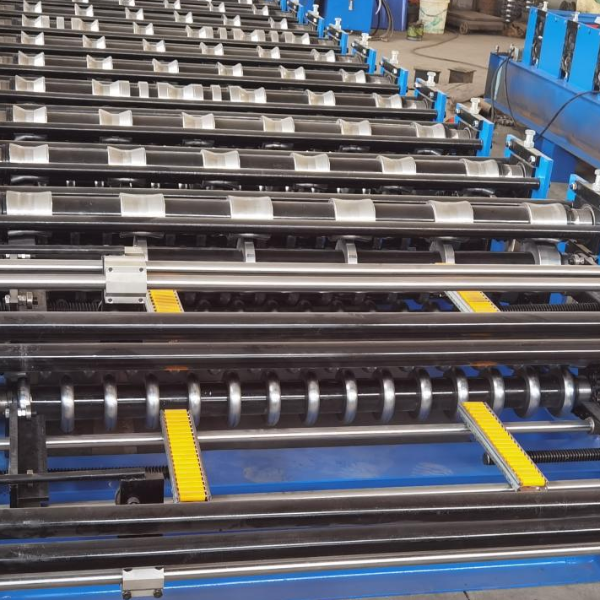

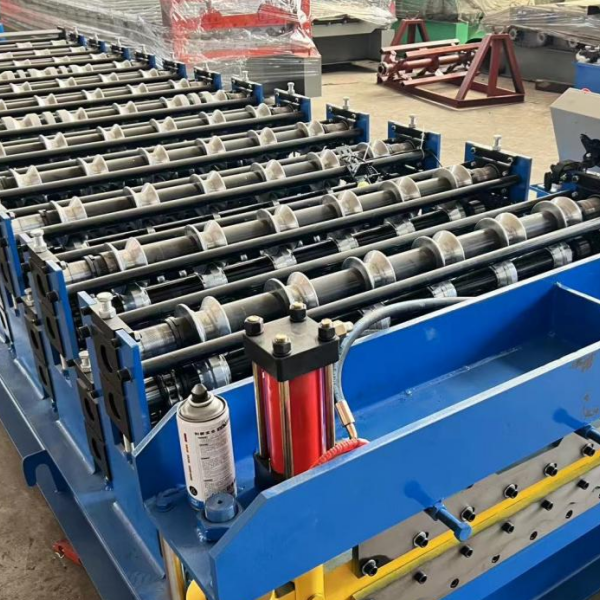

Roll forming machine
Frame main structure:H-beam.
Sidewall/Wallboard structure:14/16mm.
Shaft material:45# steel,solid shaft.Dia 70-75mm.
Roller shaft processing:Rough turning followed by precision turning,cylindrical grinding machine processing to ensure assembly accuracy,keyway processing to closely coordinate with the roller wheel for rotation.
Roller mold:45# steel .CNC lathing.
Transmission:Sprocket and chain

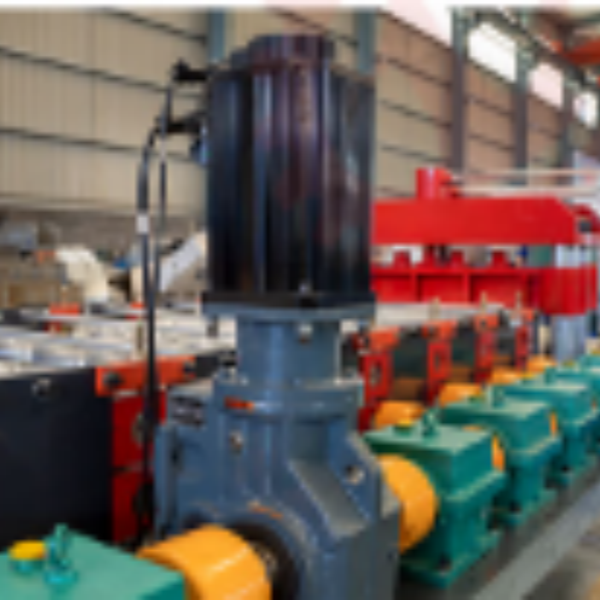

Driving Method:Reducer
Drive system
We have close cooperation with well-known motor brands both domestically and internationally,such as Shanghai,Siemens,ABB,etc.Additionally,we recommend servo drive motors,for increasing production speed by more than 60%.
Transmission by gear and chain for stable working.Gear with quenched processing for long period production,1 inch chain for more stronger transmission,longer life,lower maintance cost.
The chain part is fully covered with protective cover for human safety.According to different design needs,gear box drive can be selected to make the machine run smoothly.
Feeding platform
Whole unit structure with steel plate welded,stable and strengthed.
There are material blocking square iron on the left and right sides to prevent the steel plate from deviating.Both sides are equipped with handles to adjust feeding width.
Feeding platform with position indicator used for record the position of the last feeding production,so that the production process can be traced.
Optional: We can add hydraulic front shear after the feeding platform and before forming the rollers,with the main purpose of calculating the overall production length and reducing waste generation.
